Frequency Standard

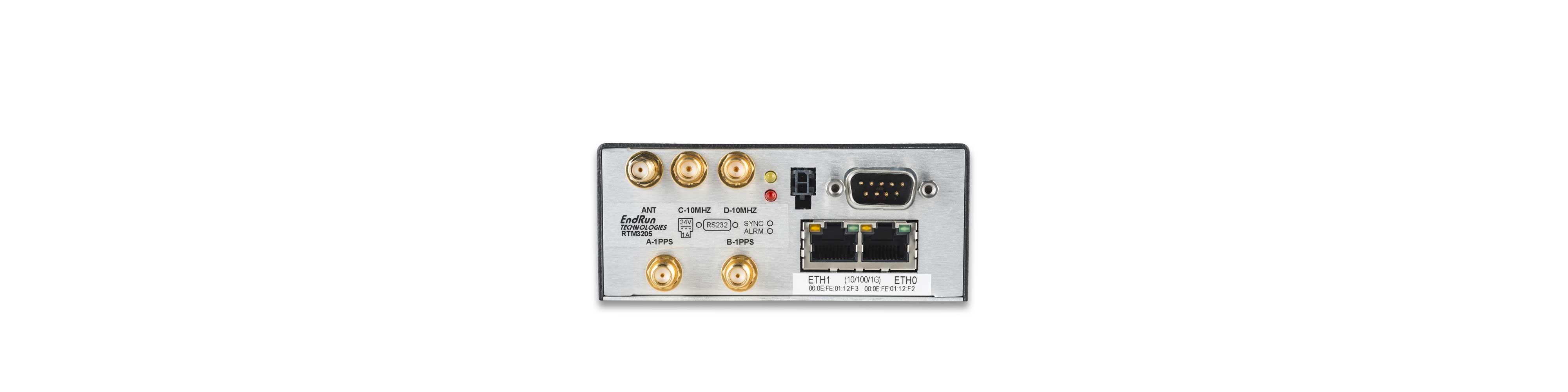

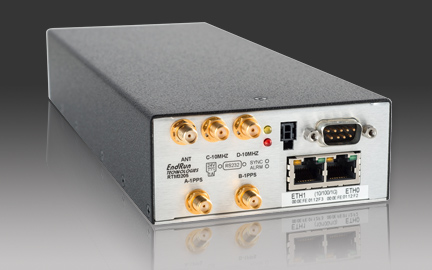

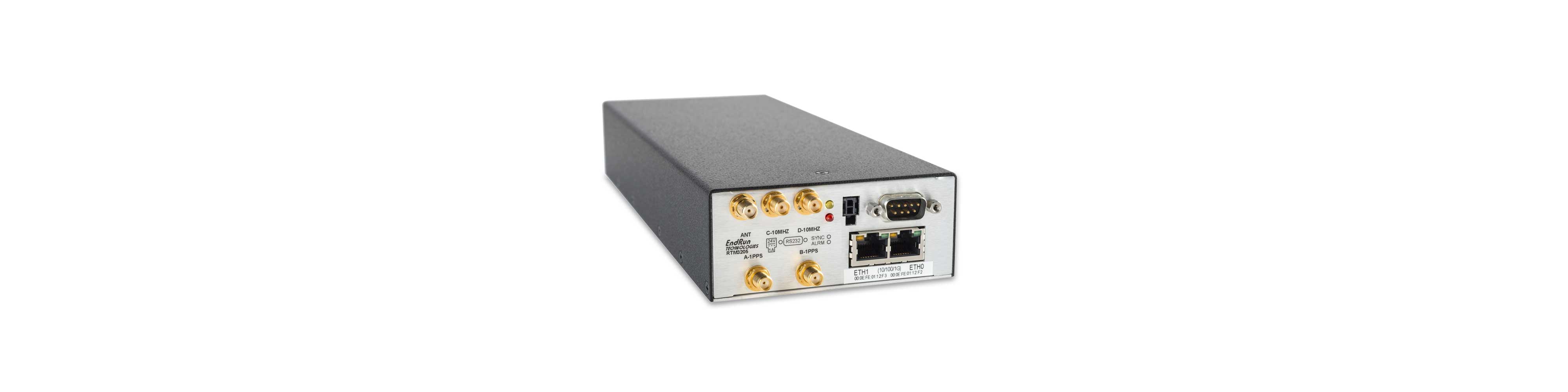

RTM3205 Precision Timing Module
GPS-Synchronized, Compact and Portable


Frequency Standard

The RTM3205 Precision Timing Module is a compact time and frequency standard designed for portable, battery-powered systems.  It provides time & frequency outputs with unprecedented accuracy and stability performance in a compact module.  And, with the Real-Time Ionospheric Corrections (RTIC) Option, RTM3205 can exceed the stability of a cesium atomic frequency reference.
  • Timing accuracy <10 nanoseconds RMS to UTC(USNO).
  • Ultra-Stable OCXO (short-term stability at 1 second: 5.1x10-13).
  • Frequency accuracy better than 6x10-14 at 1 day.
  • Dual-gigabit, IPv4/IPv6 Ethernet network ports and RS-232 serial port.
  • High-bandwidth NTP server (7500 packets per second).
  • Security-hardened network interface and protocols.
  • Low power < 10 watts
  • Two-year warranty, free software upgrades and technical support for life.
  • Optional PTP/IEEE-1588 Grandmaster.
  • Up to four time and frequency outputs including: 1PPS and Low Phase Noise Outputs.
  • Other Options: High-Stability OCXO, Ultra-Stable OCXO, RTIC, Pulse Rates, Alarm, Time Codes, and more.
Web Interface
Sample RTM3205 Webpage
Status monitoring can be easily accomplished by pointing your web browser to the RTM3205.  Here is an example of one of the status pages.  You can also perform software upgrades with the Web Interface.  For security-conscious users, HTTPS can be completely disabled.

Oscillator Options
RTM3205 can be configured with a high-stability OCXO, or an ultra-stable OCXO.  No frequency steps - guaranteed.  See details in the Oscillator Options datasheet.

Optional Outputs
These outputs provide additional flexibility in configuring your RTM3205 Precision Timing Module:
60-Day Money-Back Guarantee
  • One or two low-phase-noise 10 MHz outputs.
  • Pulse Rates from 1 PPS to 10M PPS.
  • Open-Collector Alarm
  • Time Codes (AM or DC)
Contact Us for Pricing
For pricing and information contact us between 7 am and 4 pm Pacific Time:
1-877-749-3878
